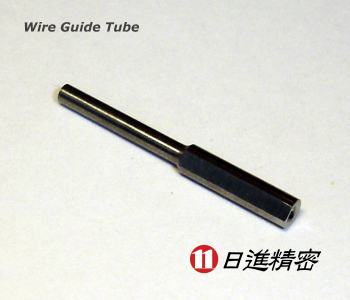

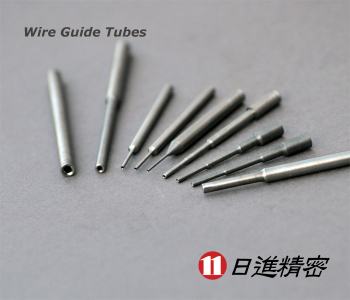

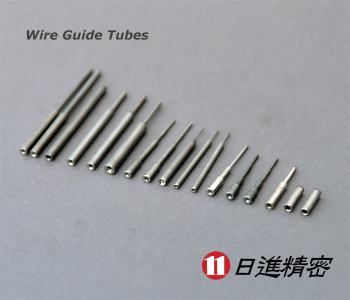

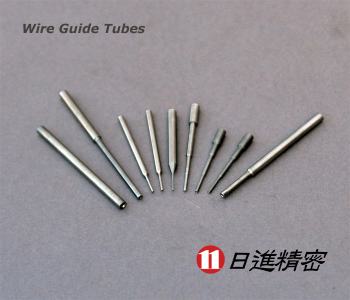

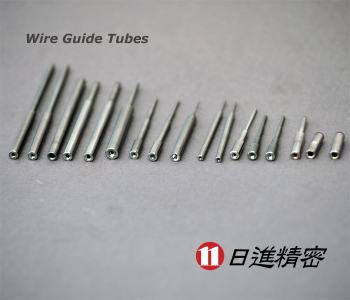

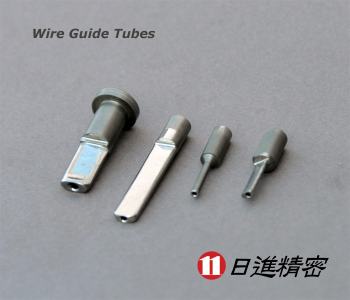

Wire Guide Tubes
|
|
|
- Excellent "R" Shape
- Mirror finished surface maintain smooth tension
and no damage to enamelled layer of wire

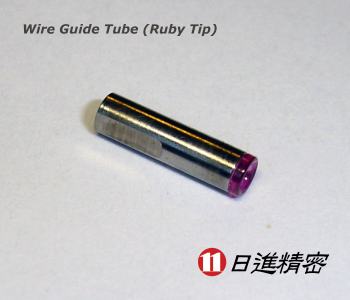

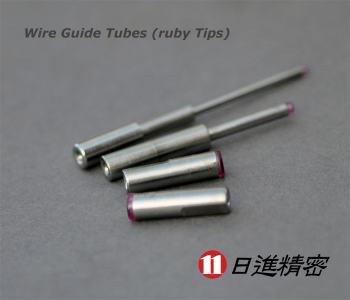

- Ruby nozzles are available by customer's request.
- Special steel tube can be used for ruby nozzle
by request og customers.
|
|
|
|
| |
■ Standard Diameter
|
| Diameter (mm) |
|
|
|
| Outside |
|
Inside |
|
|
Φ2.0 |
|
0.3, 0.4, 0.6, 0.8, 1.0, 1,2 |
|
|
Φ3.0 |
|
0.2, 0.3, 0.4, 0.5, 0.6, 0.8, 1.0, 1.2, 1.4, 1.6 |
|
|
Φ4.0 |
|
0.6, 0.8, 1.0, 1,2 1.4 1.6 1.8 |
|
|
■ Non-standard Spec.
1. total length is longer than 45mm
2. dl is smaller than 0.6mm diameter
3. ID hole size is smaller then 0.3mm diameter.
|
|
